Maya Account Linking allows your customers to link their Maya account directly in your application. With this solution you can provide a secure yet seamless payment experience for your customers.

Why use it

• One-time user authentication during linking to verify the eligibility of your customer’s Maya account.
• No test charges during account linking.
• Passwordless payments. Once linked, customers can use their Maya account for payment seamlessly.

How Maya Account Linking works

A Maya Account Link represents a single Maya Account holder, which may have eligibility to use their Maya Wallet (e-wallet) as fund source.

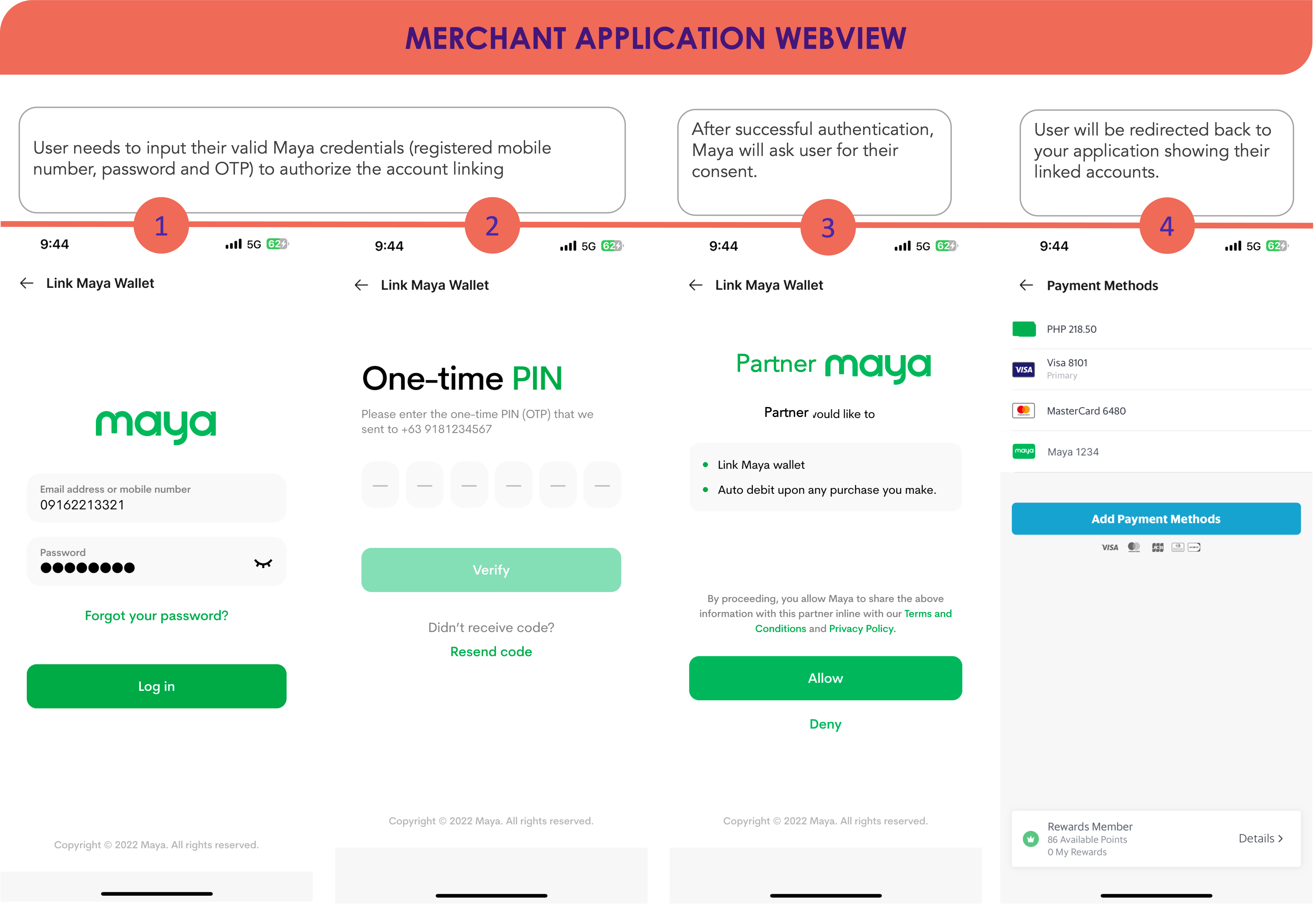

User Experience

With Maya’s Account Linking, customers need to complete the authentication process by providing their Maya user, password, and one-time password (OTP).

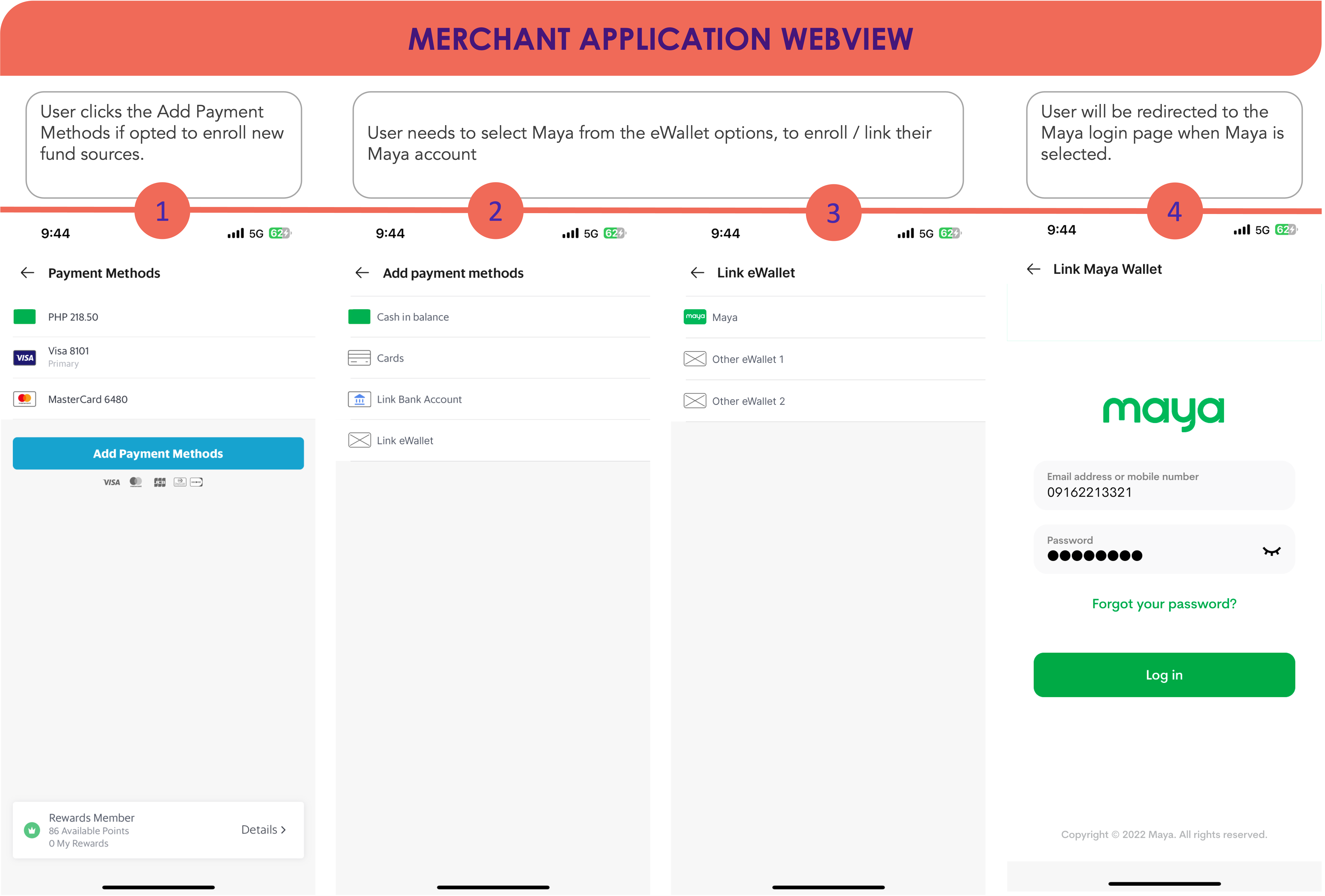

1. Initiate Linking

2. Authorize and Confirm Linking

ℹ️ The following Maya pages will be rendered in your application's webview.

Consent Scenario	Expected Result
When customer clicks Allow AND NO errors encountered during linking	Maya will redirect customer to your success page or to the URL provided in redirectUrl.success of your API request for account linking. See Account Link for details.
When customer clicks Allow BUT encountered an error on linking	Maya will redirect customer to your error page or to the URL provided in redirectUrl.failure of your API request for account linking. See Account Link for details.
When customer clicks Deny	Maya will redirect customer to your cancel page or to the URL provided in redirectUrl.cancel of your API request for account linking. See Account Link for details.

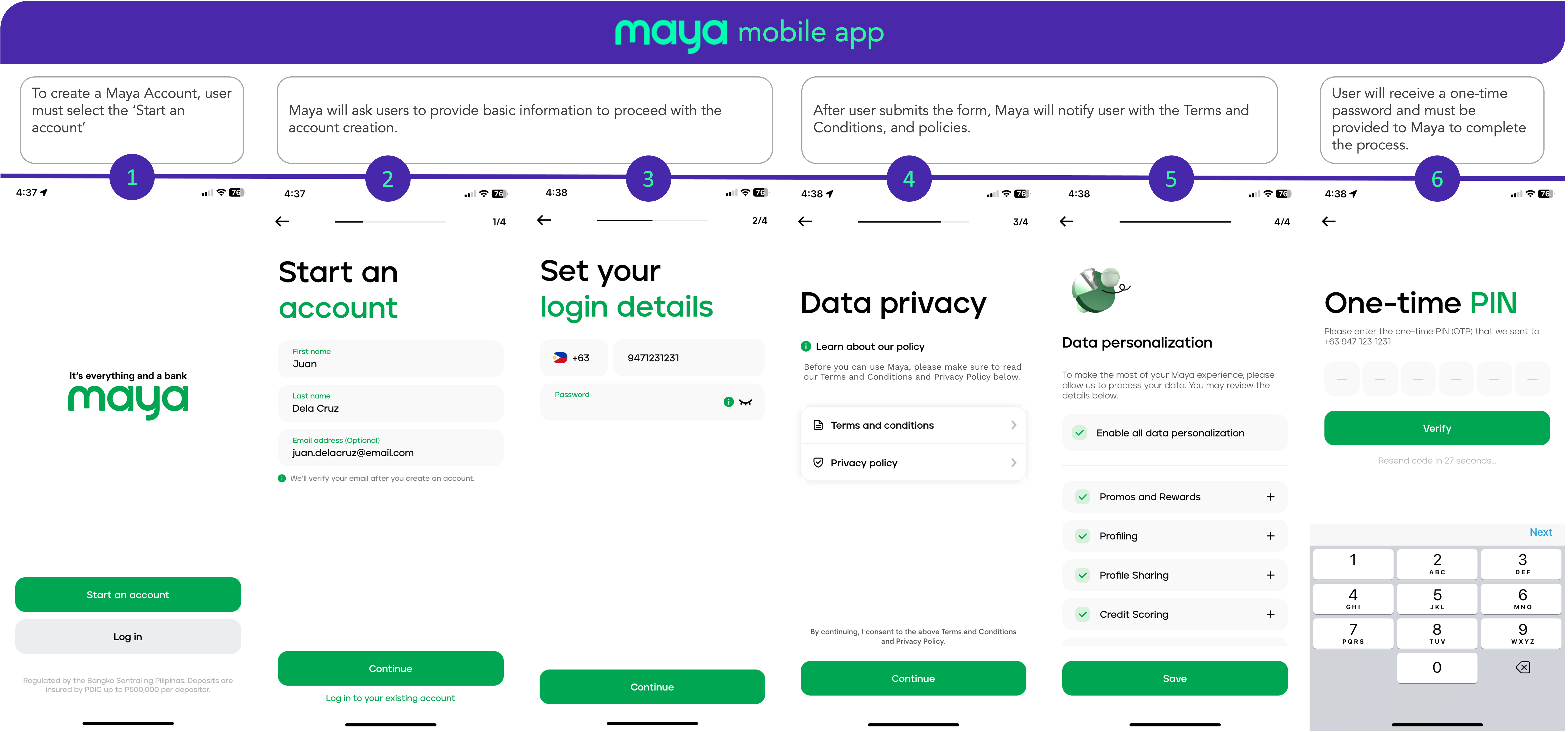

Create New Maya Account

ℹ️ New Maya Account creation can be done via the Maya Mobile App only. Customers need to exit your application and get the Maya app to create an account..

ℹ️ After creating an account, customer may revert back to your application to initiate linking of customer's Maya account..

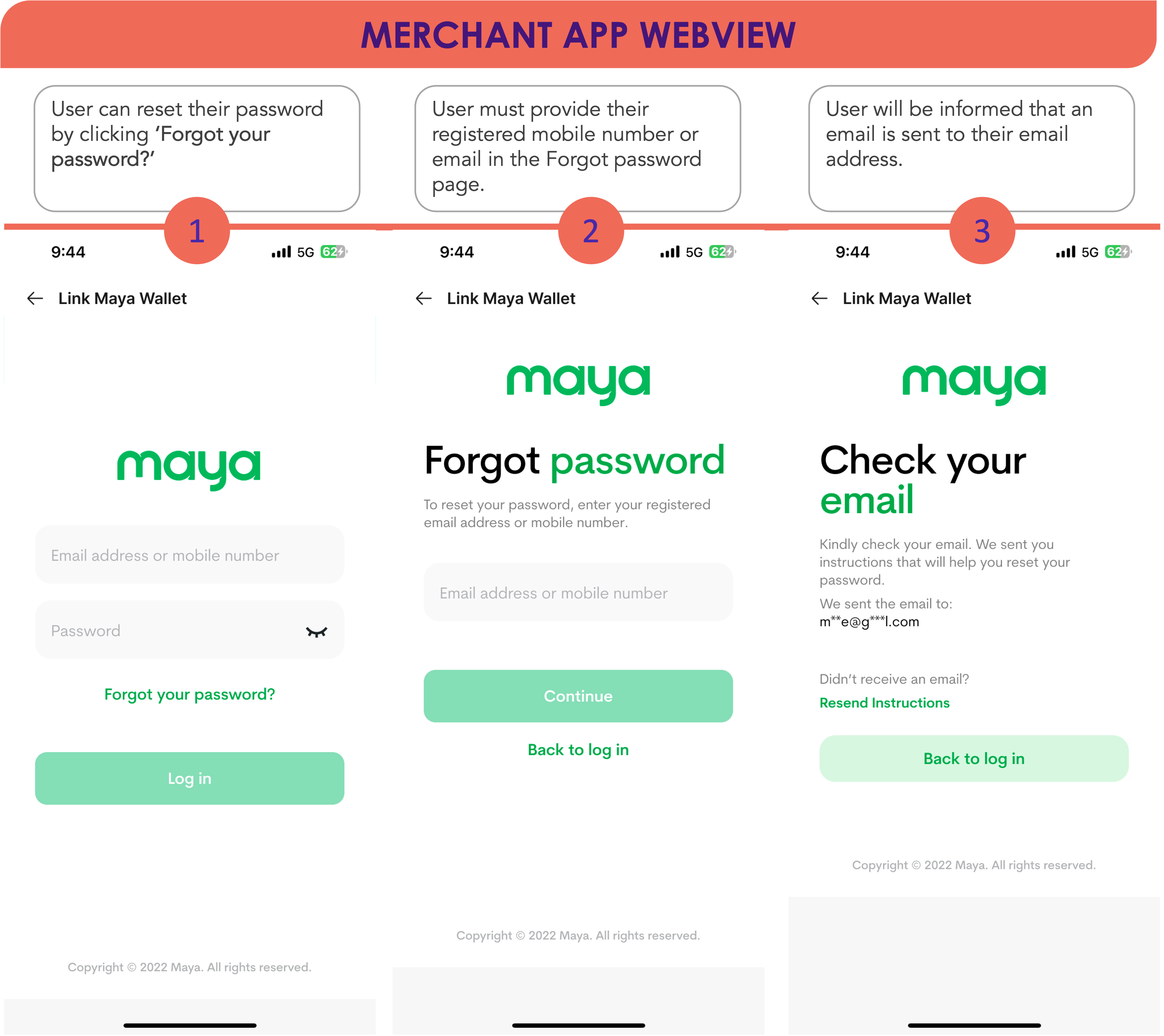

Reset Password

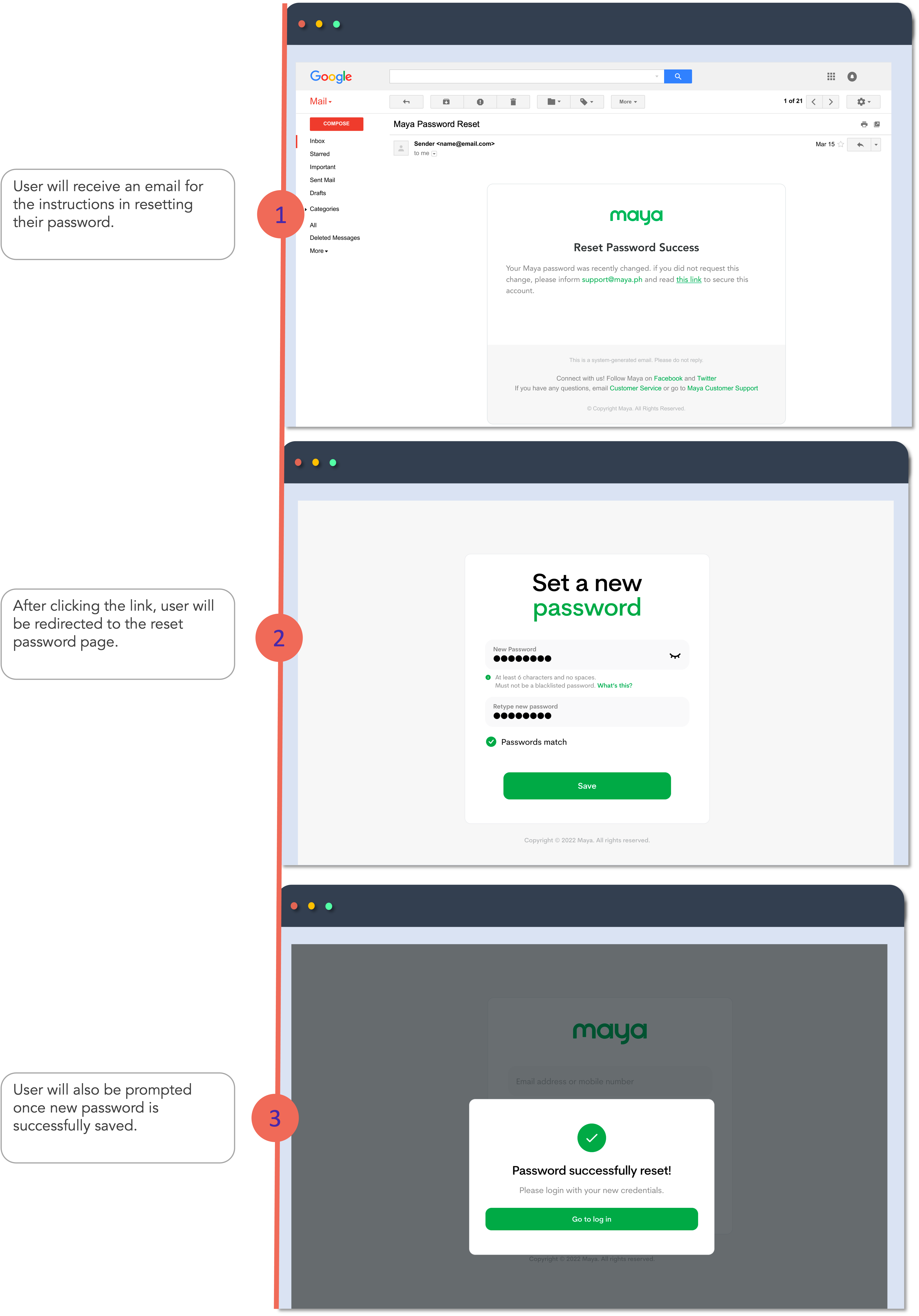

ℹ️ Password reset will be rendered within the your applications webview except for the verification via email where user has to open their email account and click the redirect link separately.

ℹ️ After successful reset of password, customer may revert back to your application to initiate linking of customer's Maya account..

Validation Errors

In these scenarios, customers will revert back to your application when session or request is cancelled.

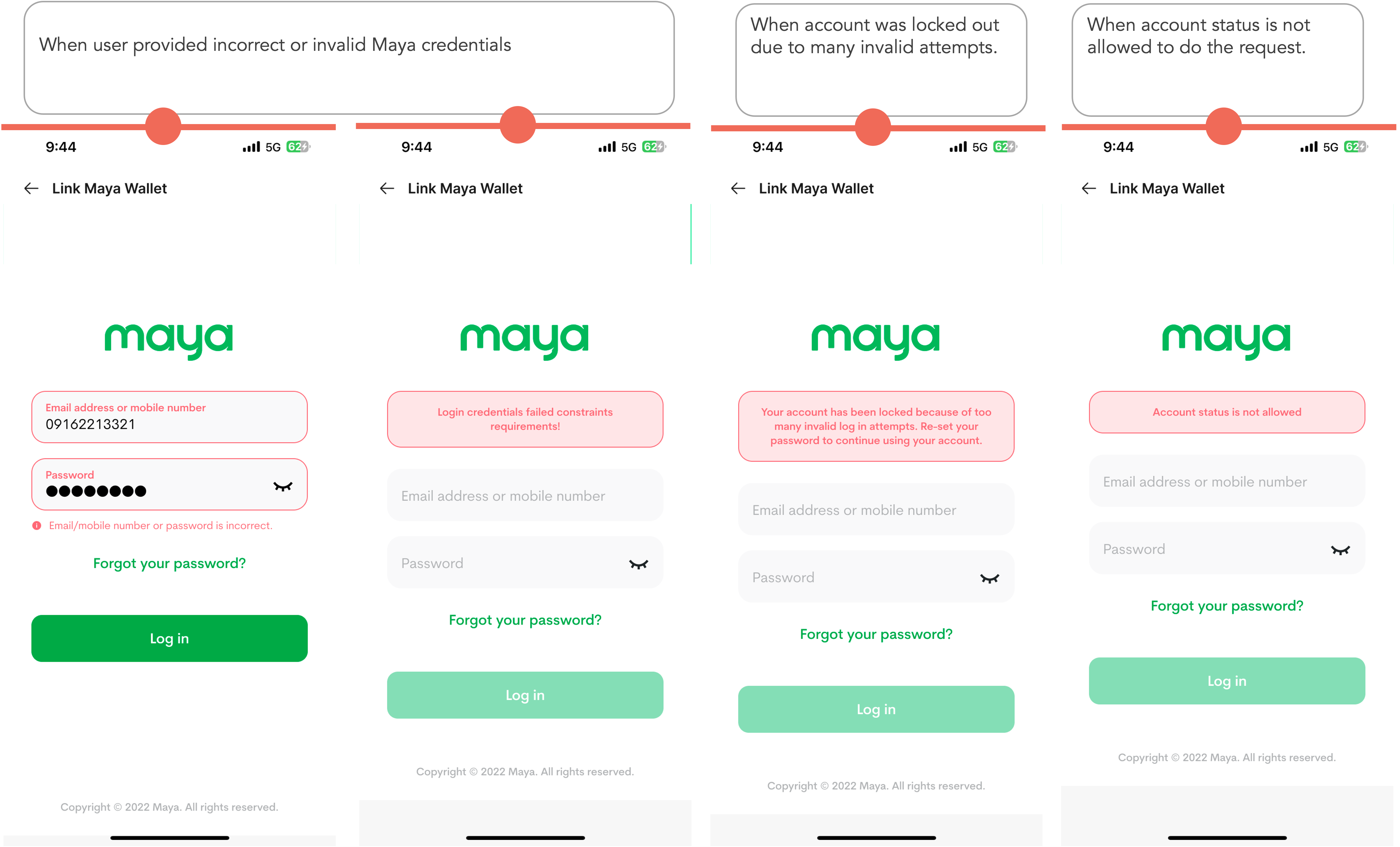

ℹ️ Maya will prompt the user accordingly when provided with incorrect credentials during login.

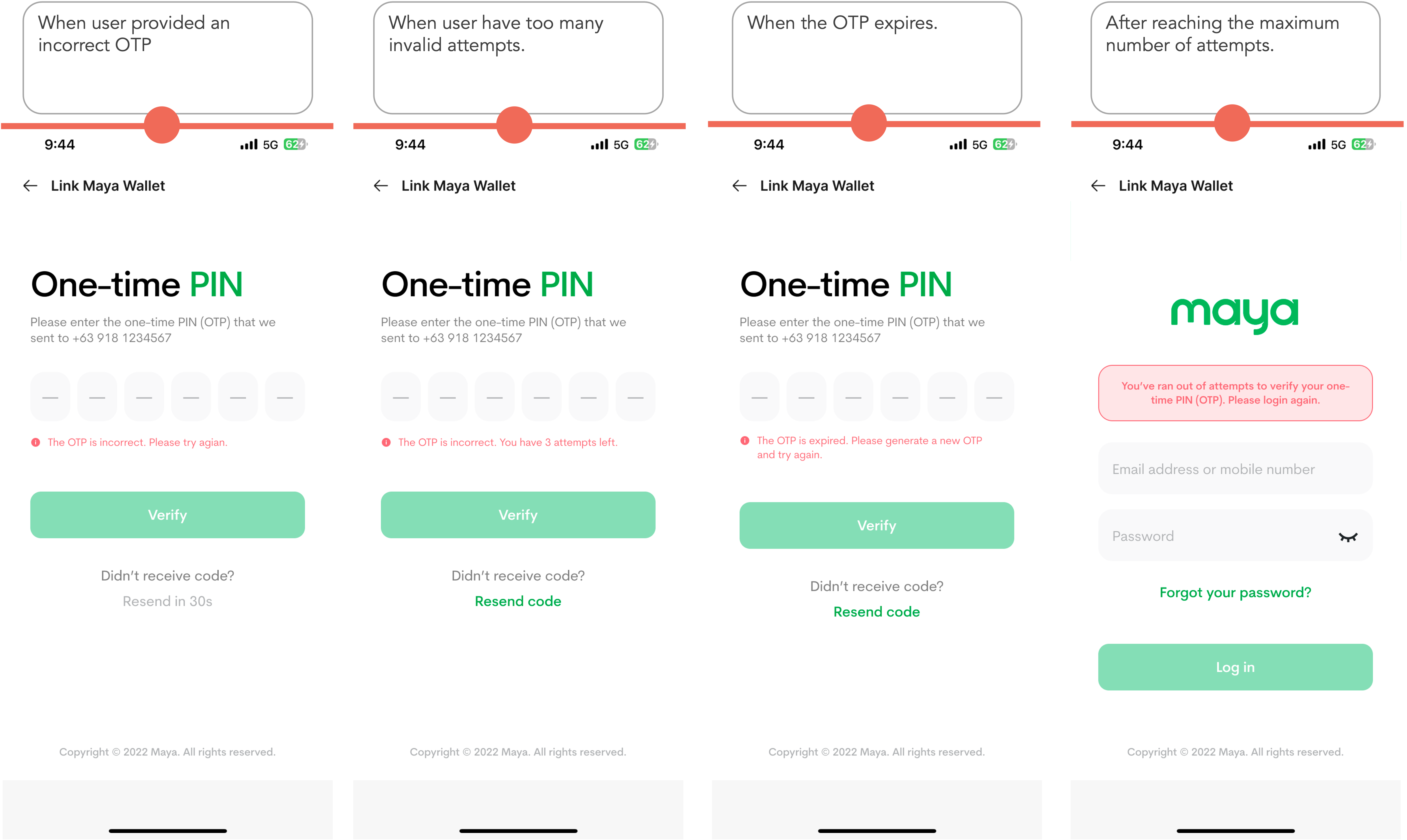

ℹ️ Maya will also provide information on the errors that may encounter during one-time password (OTP).

Account Link Validity and Expiration

When a Maya Account Link is created, it will be usable unless it gets cancelled or deactivated by the merchant.

🚧

Account Link Expiration

Self-expiration of Maya Account Link is not yet supported but may be implemented in the upcoming iterations.

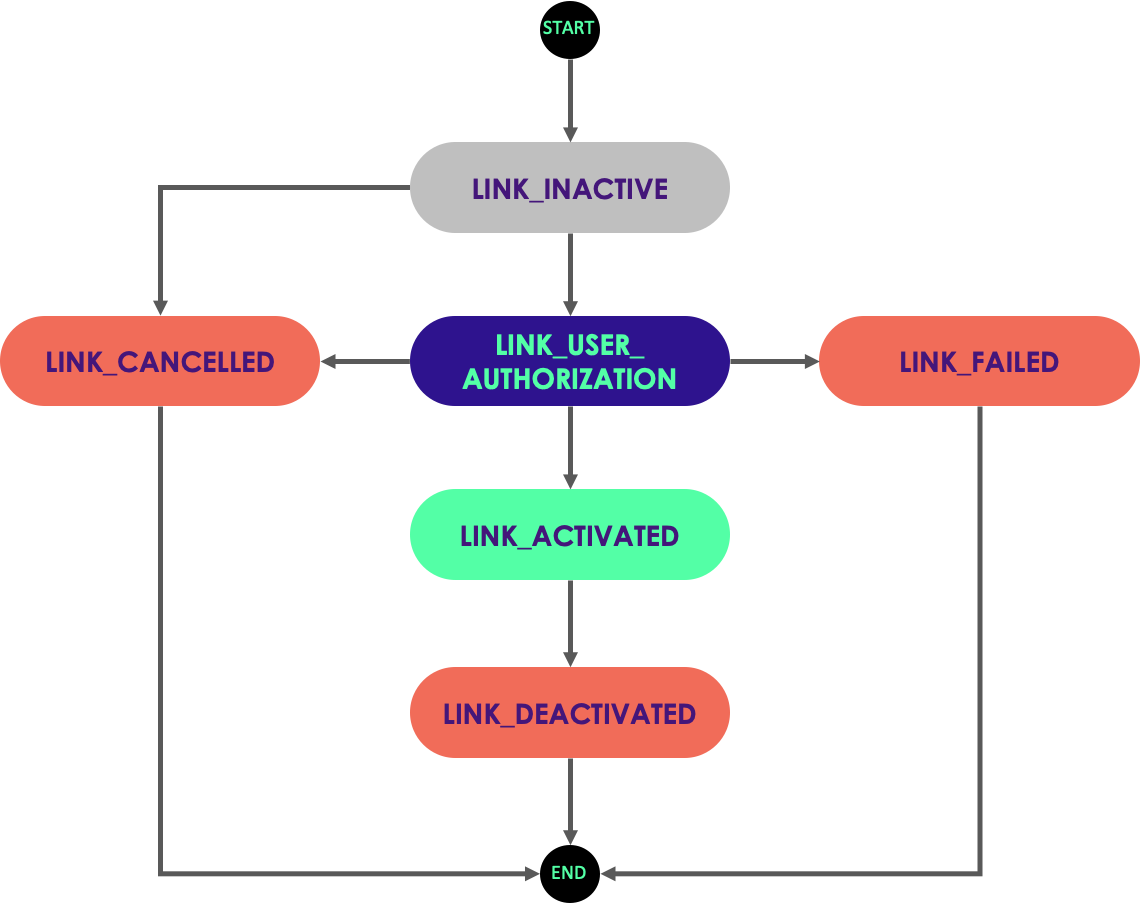

Account Link States

Account linking can also fail (for example, a customer fails to provide correct credentials or have deliberately cancelled the action), so various linking outcomes are possible.

The standing or validity of a Maya Account Link can be identified by the account link state.

State	Webhook	Description
LINK_INACTIVE	Not applicable	When account linking has been initiated but no authorization of the account holder is done yet. This is the initial state.
LINK_USER_AUTHORIZATION	Not applicable	When there is an attempt on authorizing the account linking. During this state, account holder needs to login/authorize the action.
LINK_CANCELLED	LINK_CANCELLED	When authorization of account linking has been cancelled deliberately by the account holder. No account information will be returned when this happens.
LINK_FAILED	LINK_FAILED	When the attempt to authorize the account linking has failed due to varying reasons. Maya will return an error object providing the error details.
LINK_ACTIVATED	LINK_ACTIVATED	When account linking succeeds.
LINK_DEACTIVATED	LINK_DEACTIVATED	When you unlinked the Maya account or the account linking record was deleted. 🧠 Keep in mind Once deactivated, the account link cannot be reactivated. ℹ️ In cases when account holder decided to re-link their Maya account, you have to create a new account link.

Linking succeeded

When a customer’s Maya Account Linking succeeds, the status of the linking is LINK_ACTIVATED , which means a Maya Account Link is created and will be usable unless it gets cancelled or deactivated by the merchant.

Linking cancelled

When a customer decided to cancel the action or deliberately cancels the authorization page during account linking, the status of the linking is LINK_CANCELLED.

Maya will not return account information or accountInfo object when linking was cancelled.

Linking failed

When the user authorization expires or the system have encountered errors (such as validation rejects, network or system errors), the status of the linking record is LINK_FAILED.

Response will have an error object to describe the error.

To handle this scenario:

• Parse the error object and validate the error codes on the response from Maya.
• Notify the customer.

Getting Started

API Signature

Maya can support API signature implementation within the endpoints covered in this guide. This practice of API signature serves the purpose of ensuring the integrity of data obtained from a server. With API signature in place, it becomes essential for the integrating system to digitally sign the outgoing request and also possess the capability to authenticate the response received from Maya.

For more information, visit the API signature guide

1 Setup your Maya Manager

Setup first your Maya Manager Staging Account.

2 Generate your API Keys and Authenticate

Generate your API keys by following the steps below:

Authenticating with our API

Authentication is done via HTTP Basic Authentication. Depending on the API endpoint, the public or secret key must be provided as the username and the password left as blank.

Steps are as follows:

1. Combine Username and Password (left blank) separated by ‘:’ (colon). If your API key is “pk-Z0OSzLvIcOI2UIvDhdTGVVfRSSeiGStnceqwUE7n0Ah”, the resulting string is:

pk-Z0OSzLvIcOI2UIvDhdTGVVfRSSeiGStnceqwUE7n0Ah:

2. Apply Base64 encoding to the resulting string from Step 1. Using the resulting string from Step 1, the Base64 encoded string will be:

cGstWjBPU3pMdkljT0kyVUl2RGhkVEdWVmZSU1NlaUdTdG5jZXF3VUU3bjBBaDo=

3. Indicate the authorization method i.e. “Basic” followed by a space then the Base64 encoded string in Step 2. An example is shown below.

Authorization: Basic cGstWjBPU3pMdkljT0kyVUl2RGhkVEdWVmZSU1NlaUdTdG5jZXF3VUU3bjBBaDo=

See also: HTTP Basic Auth

Linking a Maya Account

1 Prepare your Success Message

It’s important for your customer to see the status after customer have successfully linked their Maya account. Create your success message and reflect the status on your application.

2 Establish Maya Account Linking to your App

Add a 'Link a Maya Account' button in your application that calls a server-side endpoint to create a Maya Account Link.

⚠️ When calling this endpoint, you must nominate your callback URLs where your customer will be redirected, corresponding to the account linking status.

API Specifications

POST https://pg-staging.maya.ph/accounts/links

3 Create webhooks for real-time Maya Account Link status

Manage the linking status update by implementing webhooks.

const express = require('express');
const app = express();

app.post('/webhook', async (req, res) => {
  // TODO: You will have to implement the logic of this method.
  processMayaWebhookNotificationData(req.body);

  res.send({
    success: true
  })
});

app.listen(8080, () => console.log('Listening on port ${8080}!'));

$ curl -s -D - -o /dev/null -X POST -H "Content-Type: application/json" \
-d '{
  "result": "SUCCESS",
  "data": {
    "id": "fa4da2ff-dcda-4367-a97d-0c9445147b73",
    "type": "maya",
    "state": "LINK_ACTIVATED",
    "requestReferenceNumber": "Mer-Account-Link-01",
    "createdAt": "2023-02-06T16:11:12.007Z",
    "updatedAt": "2023-02-06T16:20:12.007Z",
    "userCustomizations": {
      "skipResultPage": true
    },
    "redirectUrls": {
      "success": "https://http.cat/200?id=Mer-Account-Link-01&result=success",
      "failure": "https://http.cat/200?id=Mer-Account-Link-01&result=failure",
      "cancel": "https://http.cat/200?id=Mer-Account-Link-01&result=cancel"
    },
    "accountInfo": {
      "last4": "1234"
    }
  }
}' \
https://83ef-130-105-160-253.ngrok.io/webhook

HTTP/2 200
content-type: application/json; charset=utf-8
date: Mon, 14 Feb 2022 01:08:14 GMT
ngrok-agent-ips: 130.105.160.253
content-length: 18

Webhook Payload Samples

OPT Retrieve Account Link Info

Use the link ID (id) and call the GET /accounts/links/{id} endpoint to get the account link details such as link status.

API Specifications

GET https://pg-staging.maya.ph/accounts/links/{id}

OPT Delete Account Link

Use the link ID (id) and call the DELETE /accounts/links/{id} endpoint to unlink or delete the account link.

API Specifications

DELETE https://pg-staging.maya.ph/accounts/links/{id}

Maya Account Linking Errors and Handling

Acquire a better understanding of Maya Account Linking errors and their resolution methods to ensure appropriate management of errors.

Maya Account Linking adopts a RESTful architecture and relies on HTTP response and error codes to notify clients about the outcome of their requests, whether successful or not.

Error Codes

Error responses are returned in JSON format:

{
    "result": "FAIL",
    "error": {
        "code": "ACL001",
        "message": "Missing/invalid parameters.",
        "parameters": [
            {
                "description": "redirectUrls is required",
                "field": "redirectUrls"
            }
        ]
    }
}

The following are the error codes and messages related to account linking operations.

Timeouts

If the timeout is reached upon calling the Maya Account Linking endpoints, an HTTP 504 Gateway Timeout error will be encountered. Please refer to the timeout settings for each endpoint below, as well as the recommended actions to take.

API Endpoint	Timeout	What to do?
Create Account Link	30seconds	It is recommended for your application to retry creating a new account link. If the timeout issue continues even after several retries, report the issue to the Relationship Manager or submit a ticket through the Maya Developer Hub Service Desk . When reporting the issue, make sure to include the following information: partyId requestReferenceNumber
Get Account Link	30seconds	It is recommended for your application to retry retrieval of account link. If the timeout issue continues even after several retries, report the issue to the Relationship Manager or submit a ticket through the Maya Developer Hub Service Desk . When reporting the issue, make sure to include the accountLinkId.
Delete Account Link	30seconds	It is recommended for your application to retry deletion of account link. If the timeout issue continues even after several retries, report the issue to the Relationship Manager or submit a ticket through the Maya Developer Hub Service Desk . When reporting the issue, make sure to include the accountLinkId.

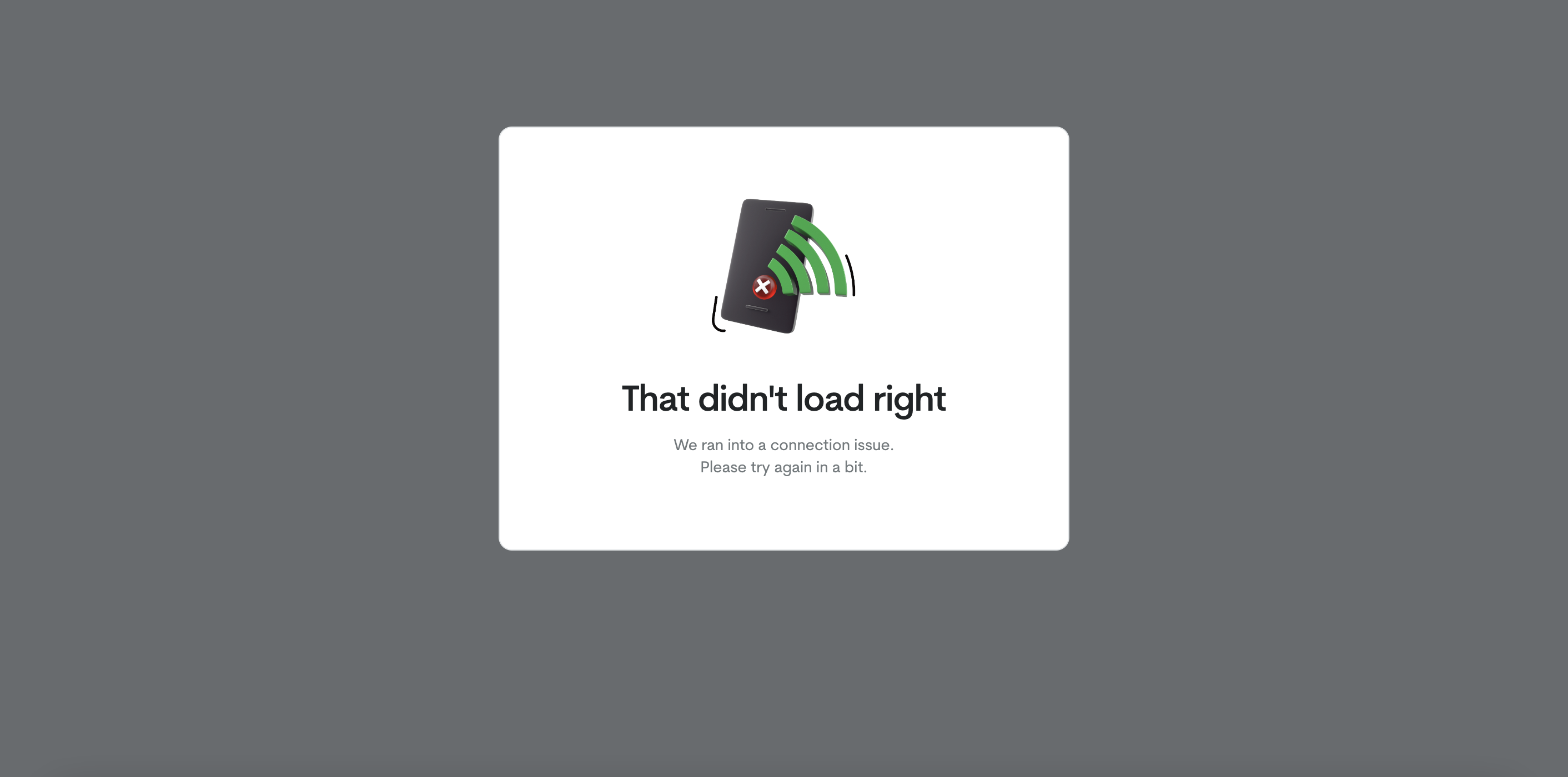

If a timeout occurs during activation link processing, Maya will display an error message to the user, stating ‘That didn’t load right’:

Event/Process	Timeout	What to do?
Activate Account Link (via activationUrl)	30seconds	It is recommended for your application to try refreshing/reloading the activation URL. If the timeout issue continues even after multiple refresh attempts, please notify your Relationship Manager or submit a ticket via the Maya Developer Hub Service Desk . When reporting the issue, make sure to include the following information: accountLinkId the point of timeout (if determined) upon loading of activationUrl after login page after OTP page after consent page

Accept payments with a linked Maya wallet
