API Signature

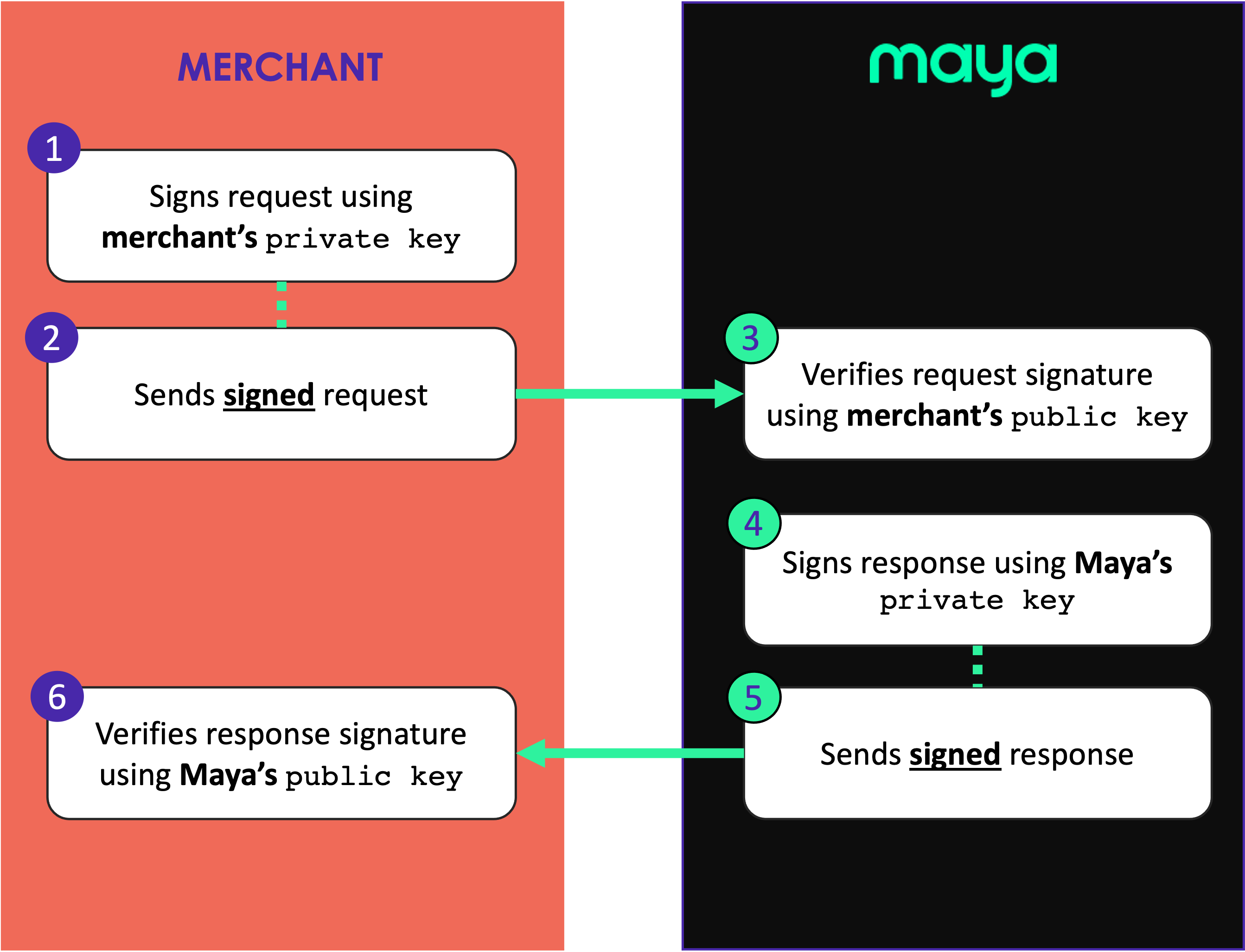

Digitally signing an API request is generally used to validate the integrity of data received from a server. Presented below is a high level diagram illustrating how merchants will do the signing of requests and the authentication of responses to and from public Maya APIs, using an asymmetric key scheme:

How API Signature works

---

Generating your RSA key pair

Before you can sign your requests, you need to generate your own RSA key pair. You may use OpenSSL to generate your RSA key pair by following the instructions provided below.

1. Install OpenSSL in your system.
2. Generate an RSA key pair, of size 2048, and output it to a file (sample file name below is key.pem):

   openssl genrsa -out key.pem 2048


3. Extract the public key from the key pair (sample file name below is public.pem):

   openssl rsa -in key.pem -outform PEM -pubout -out public.pem


Supported Key Formats

The following OpenSSL key format is supported:

Submission of your public key

Please contact your Maya Relationship Manager to coordinate the submission of your public key. This key will be used by Maya to verify the signed request you provide.

---

Configuration

1. Merchant needs to provide their public key to Maya in order for the latter to verify API request signature from the former.
   • Merchant needs to keep their corresponding private key in order to sign API requests.
   • The public key will be stored by Maya and will be used for all API request verification for the merchant.
2. Maya needs to provide their public key to the merchant in order for the latter to verify API response signature from the former.
   • Maya needs to keep their corresponding private key in order to sign API responses.
3. The API signature feature may be enabled in the following modes:
   • Test mode - Maya only verifies signature if Maya-Signature is present in the request headers.
   • Force mode - Maya always verifies and signs requests and responses.

Key Rotation

When Maya provides their public key, it will be associated with a keyId. This keyId will be utilized to identify the correct key used when Maya rotates its signing key pair.

The merchant, on the other hand, should likewise rotate and submit their new public key ahead of the existing one’s target expiration. Upon receipt of new public key, Maya will associate it with a keyId.

Replay Protection

Every signed request includes a timestamp element. In situations involving replay attacks, the timestamp value is examined to ensure it falls within the timeframe during which the request should have been received by Maya.

---

Signing the Request

The following steps narrate how to sign a request message:

1. Construct the content to be signed, which is composed of the following entities:

   • Request Method - the HTTP Method used in the request.
   • Request URI - the HTTP URI part that contains the path, query and/or fragment of the full URI.
   • Request Timestamp - the timestamp in Unix time format (seconds) when the request is created by the client.
   • Request Body - the serialized data as sent by the client.

2. To illustrate, the following is an example request with the components identified:

   curl --request POST 'https://pg-staging.paymaya.com/accounts/links' \
   --header 'Content-Type: application/json' \
   --data '{"type":"maya","requestReferenceNumber":"57d933cc-c870-4b68-bbff-93882f6dac96","redirectUrls":{"success":"https://http.cat/200?state=success","failure":"https://http.cat/400?state=failure","cancel":"https://http.cat/400?state=cancel"},"userCustomizations":{"skipResultPage":true}}'


   • Request Method = POST
   • Request URI = /accounts/links
   • Request Timestamp - 1692697424 (Assuming request is created on Tue Aug 22 2023 09:43:44 GMT+0000)
   • Request Body = {"type":"maya","requestReferenceNumber":"57d933cc-c870-4b68-bbff-93882f6dac96","redirectUrls":{"success":"https://http.cat/200?state=success","failure":"https://http.cat/400?state=failure","cancel":"https://http.cat/400?state=cancel"},"userCustomizations":{"skipResultPage":true}}

3. After determining the components, the content to be signed should be created using the following syntax (single-space-delimited syntax):

   <Request Method> <Request URI> <Request Timestamp> <Request Body>


   Note: In case the Request Body is not provided (i.e. for GET requests), the syntax is:

   <Request Method> <Request URI> <Request Timestamp>


   Using the provided example, the resulting content to be signed is:

   POST /accounts/links 1692697424 {"type":"maya","requestReferenceNumber":"57d933cc-c870-4b68-bbff-93882f6dac96","redirectUrls":{"success":"https://http.cat/400?state=success","failure":"https://http.cat/400?state=failure","cancel":"https://http.cat/400?state=cancel"},"userCustomizations":{"skipResultPage":true}}


4. Sign the resulting string using your private key via SHA256 with RSA signature creation. The resulting signature should be encoded in Base64 then escaped to URI characters. The following are sample steps to perform the signing via command line (e.g. using OpenSSL):

   # Let privatekey.pem be your RSA private key in PEM format

   # Let data.txt be the file that contains the data to be signed
   touch data.txt
   echo 'POST /accounts/links 1692697424 {"type":"maya","requestReferenceNumber":"57d933cc-c870-4b68-bbff-93882f6dac96","redirectUrls":{"success":"https://http.cat/400?state=success","failure":"https://http.cat/400?state=failure","cancel":"https://http.cat/400?state=cancel"},"userCustomizations":{"skipResultPage":true}}' > data.txt

   # Sign the data.txt using your private key
   openssl dgst -sha256 -sign privatekey.pem -out data.txt.signature data.txt

   # Encode the signature to Base64
   base64 -i data.txt.signature -o data.txt.signature.base64

   # Encode the Base64 string to URI
   # Let encodeUriComponent be a custom CLI command that encodes content of a text file into URI component characters
   encodeUriComponent -i data.txt.signature.base64 -o data.txt.signature.base64.encodedUri


5. Send the request with the following custom header Maya-Signature with the following syntax:

   Maya-Signature: timestamp=1692697424, version=1, keyId=1, signature=sKOAO%2BAg1tBOfNSPfqLl%2FLd2eFqY%2FtMpuV9maDbq7a8a%2BWUjhq3UR8Df%2BohOmqJEvEPkntoGbW6SXIZ1JtSuQQxTBmMErCAtumu6bIRJHoK4%2BMnoVnB6rBJog95GtYXJivqyCIardvqidL6b8YloB4bZy6%2B2mHetpgR9suOTHoe6H2JNpbvIvg34IvE8GXwnkYCTvlLKrTTRO45Nc0yoEdTzqjKuN4btpl6ToKrA9fdCIJAbI0pwWMa2GlYreF5DxpOAj9aEKQ3R4Bh5mUQwdzBwwmoSipBwslVAEUAh4jR%2F%2B65AwhDfVd1TkGQfAuYOfVQJWaJj1tq4d3eKrbDLrg%3D%3D


   where:

---

Verifying the Response

The following steps narrate how to verify a response message:

1. From the response headers, get the Maya-Signature header, which has the following key-value pairs:

   Variable	Description
   timestamp	contains the value of Response Timestamp (for example: 1692697460 assuming response is sent on Tue Aug 22 2023 09:44:20 GMT+0000)
   version	specifies the version of the signing algorithm utilized, with the current supported value being 1
   keyId	contains the keyId of the Maya’s public key as provided to the merchant.
   signature	the URL encoded signature.

2. Construct the content to be verified, which is composed of the additional entities:

   • Request Method- the HTTP Method used in the corresponding request.
   • Response URI - the HTTP URI part that contains the path, query and/or fragment of the full URI. This is the same as Request URI.
   • Response Body - the serialized data sent by Maya.

3. To demonstrate, the following is an example response:
   Body:

   {"result":"SUCCESS","data":{"id":"44cc575e-ee21-45e0-a420-e8acab5ae196","state":"LINK_INACTIVE","type":"maya","requestReferenceNumber":"57d933cc-c870-4b68-bbff-93882f6dac96","redirectUrls":{"success":"https://http.cat/200?state=success","failure":"https://http.cat/400?state=failure","cancel":"https://http.cat/400?state=cancel"},"userCustomizations":{"skipResultPage":true},"createdAt":"2023-08-22T09:44:20Z","updatedAt":"2023-08-22T09:44:20Z","activationUrl":"https://checkouts-staging.maya.ph/v2/accounts/links?id=44cc575e-ee21-45e0-a420-e8acab5ae196"}}


   • Request Method = POST
   • Response URI = /accounts/links
   • Response Body = {"result":"SUCCESS","data":{"id":"44cc575e-ee21-45e0-a420-e8acab5ae196","state":"LINK_INACTIVE","type":"maya","requestReferenceNumber":"57d933cc-c870-4b68-bbff-93882f6dac96","redirectUrls":{"success":"https://http.cat/200?state=success","failure":"https://http.cat/400?state=failure","cancel":"https://http.cat/400?state=cancel"},"userCustomizations":{"skipResultPage":true},"createdAt":"2023-08-22T09:44:20Z","updatedAt":"2023-08-22T09:44:20Z","activationUrl":"https://checkouts-staging.maya.ph/v2/accounts/links?id=44cc575e-ee21-45e0-a420-e8acab5ae196"}}

4. After determining the components, the content to be signed should be created using the following syntax:

   <Request Method> <Response URI> <Response Timestamp> <Response Body>


   Using the provided example, the resulting content to be signed is:

   POST /accounts/links 1692697460 {"result":"SUCCESS","data":{"id":"44cc575e-ee21-45e0-a420-e8acab5ae196","state":"LINK_INACTIVE","type":"maya","requestReferenceNumber":"57d933cc-c870-4b68-bbff-93882f6dac96","redirectUrls":{"success":"https://http.cat/200?state=success","failure":"https://http.cat/400?state=failure","cancel":"https://http.cat/400?state=cancel"},"userCustomizations":{"skipResultPage":true},"createdAt":"2023-08-22T09:44:20Z","updatedAt":"2023-08-22T09:44:20Z","activationUrl":"https://checkouts-staging.maya.ph/v2/accounts/links?id=44cc575e-ee21-45e0-a420-e8acab5ae196"}}


5. Get the signature from the response header by getting the value of the header Maya-Signature.

6. Validate the signature using Maya’s public key (as identified by keyId) and apply SHA256 with RSA signature verification on the content string and base64-decoded signature indicated in steps 3 and 4, respectively. The following are sample steps to perform the signature verification via command line (e.g. using OpenSSL):

   # Let publickey.pem be Maya's public key in PEM format
   # Let data.txt.signature.base64.encodedUri be the encoded URI Base64 signature

   # Decode the Based64 signature from having encoded URI characters
   # Let decodeUriComponent be a custom CLI command that decodes content of a text file that has URI component characters
   decodeUriComponent -i data.txt.signature.base64.encodedUri -o data.txt.signature.base64

   # Decode the signature from Base64
   base64 --decode -i data.txt.signature.base64 -o data.txt.signature

   # Let data.txt be the file that contains the data to be verified
   touch data.txt
   echo 'POST /accounts/links 1692697460 {"result":"SUCCESS","data":{"id":"44cc575e-ee21-45e0-a420-e8acab5ae196","state":"LINK_INACTIVE","type":"maya","requestReferenceNumber":"57d933cc-c870-4b68-bbff-93882f6dac96","redirectUrls":{"success":"https://http.cat/200?state=success","failure":"https://http.cat/400?state=failure","cancel":"https://http.cat/400?state=cancel"},"userCustomizations":{"skipResultPage":true},"createdAt":"2023-08-22T09:44:20Z","updatedAt":"2023-08-22T09:44:20Z","activationUrl":"https://checkouts-staging.maya.ph/v2/accounts/links?id=44cc575e-ee21-45e0-a420-e8acab5ae196"}}' > data.txt

   # Verify the data.txt using Maya's public key
   openssl dgst -sha256 -verify publickey.pem -signature data.txt.signature data.txt


---

Error Codes

When an error is encountered-related to the API signature, the API responds with a JSON error response with the following sample schema:

{
    "error": "Invalid authentication credentials. Kindly verify if the key you are using is correct.",
    "code": "K008",
    "reference": "084551e8-491e-4186-85e8-e2d1575c787b"
}

where:

• error - is a description of the error that has occurred.
• code - the error code identifying the error that has occurred.
• reference - a unique log reference number of the operation that failed (for investigation purposes).
